Technical Support
Please click on a tab below for the specification for each type and gear option for Garador Up and Over, Sectional, Side-hinged, GaraRoll garage doors and FrontGuard front entrance doors.

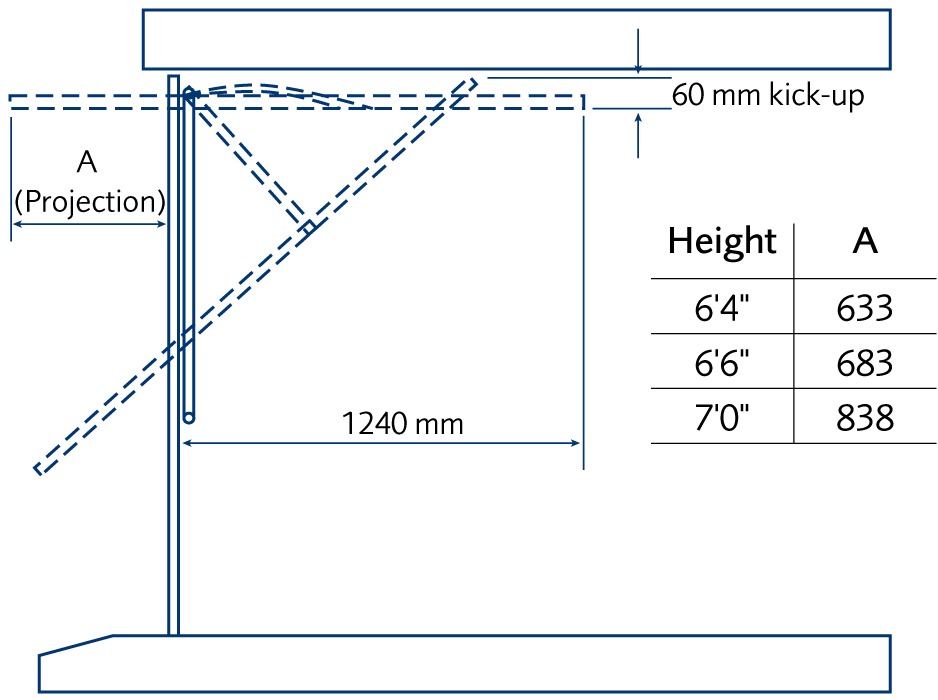

| The canopy gear allows the door to travel in vertical tracks and is counterbalanced by an overhead torsion spring. The normal drive through is 40mm less than the opening width and 130mm less than the opening height. |  |

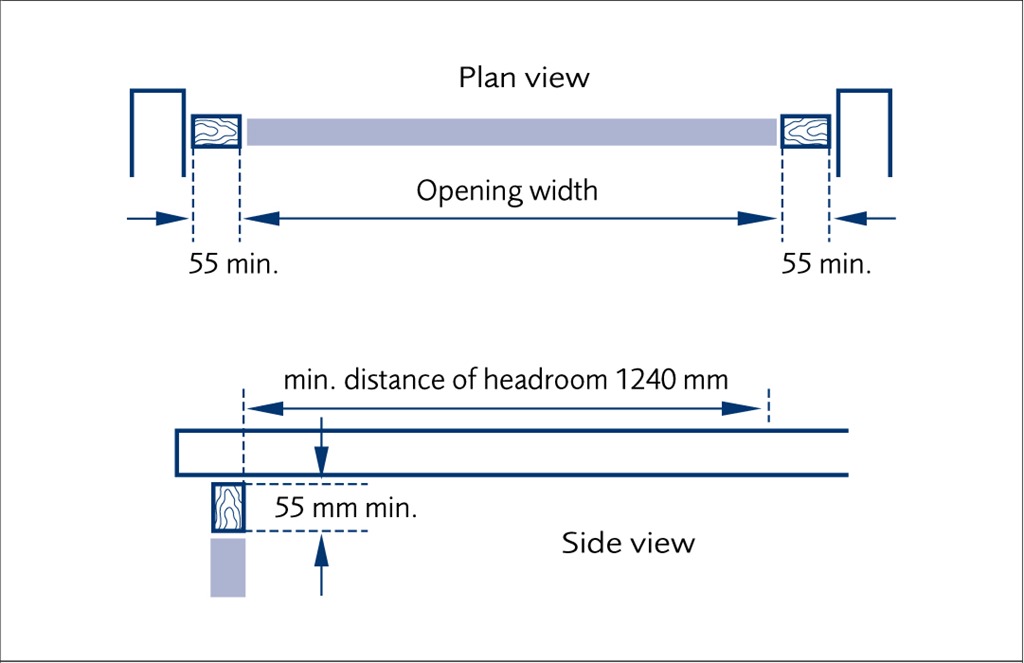

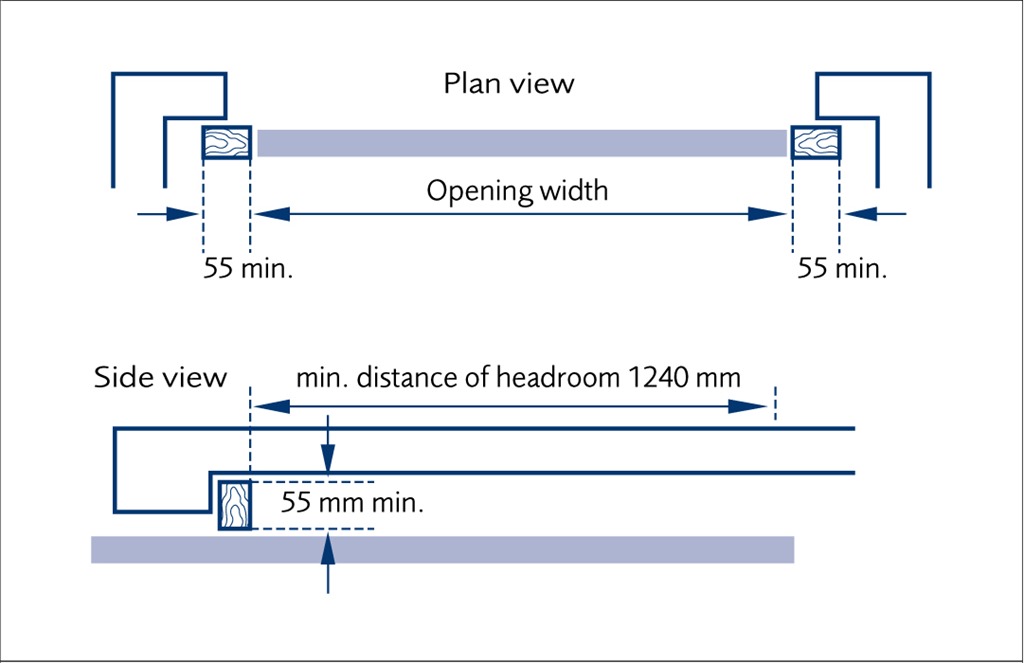

| On Site Timber Frame  Behind Brickwork Fixing |
 Between Brickwork Fixing |

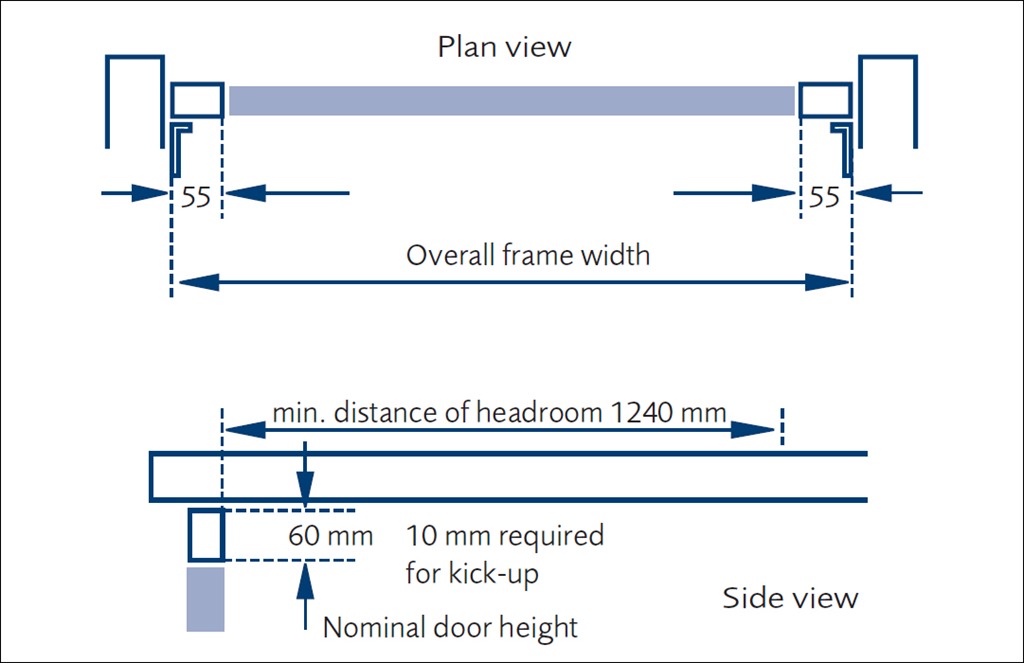

| Factory pre-framed with steel box frame  Behind Brickwork Fixing |

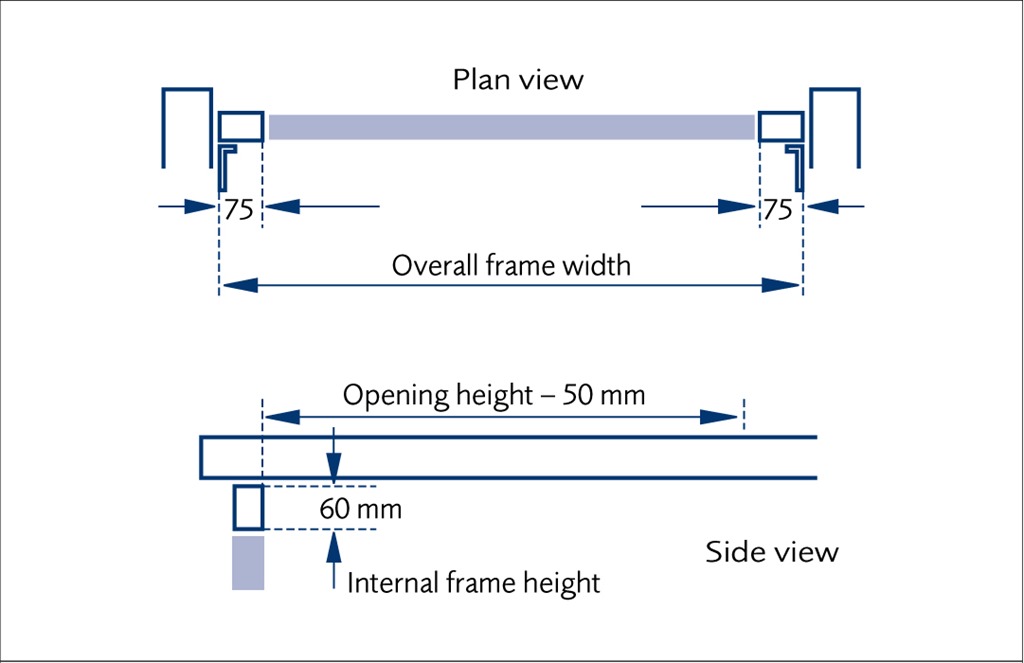

 Between Brickwork Fixing |

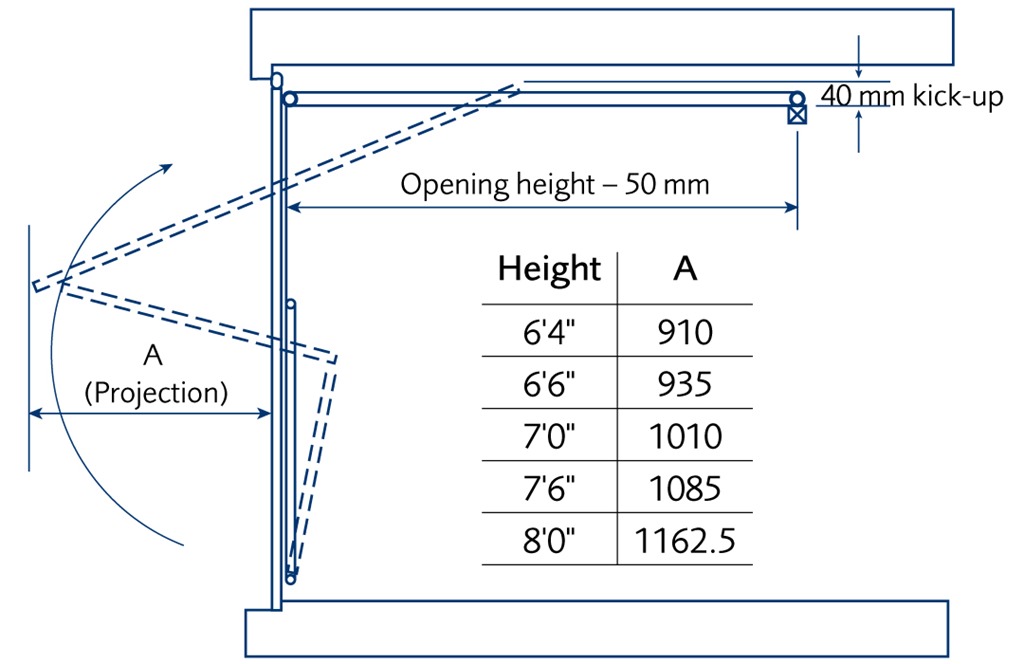

| The retractable gear allows the door to be retracted inside the garage when opened by means of horizontal overhead tracks supported by wall or ceiling mounted suspension brackets. This gear is available as an option for single doors and comes as standard with double garage doors. |  |

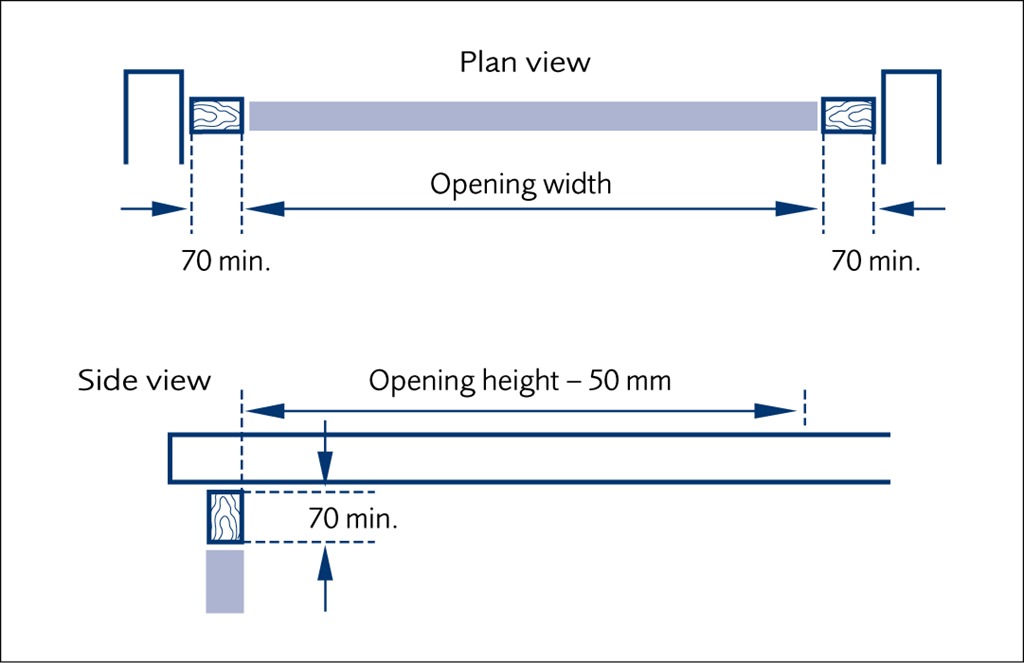

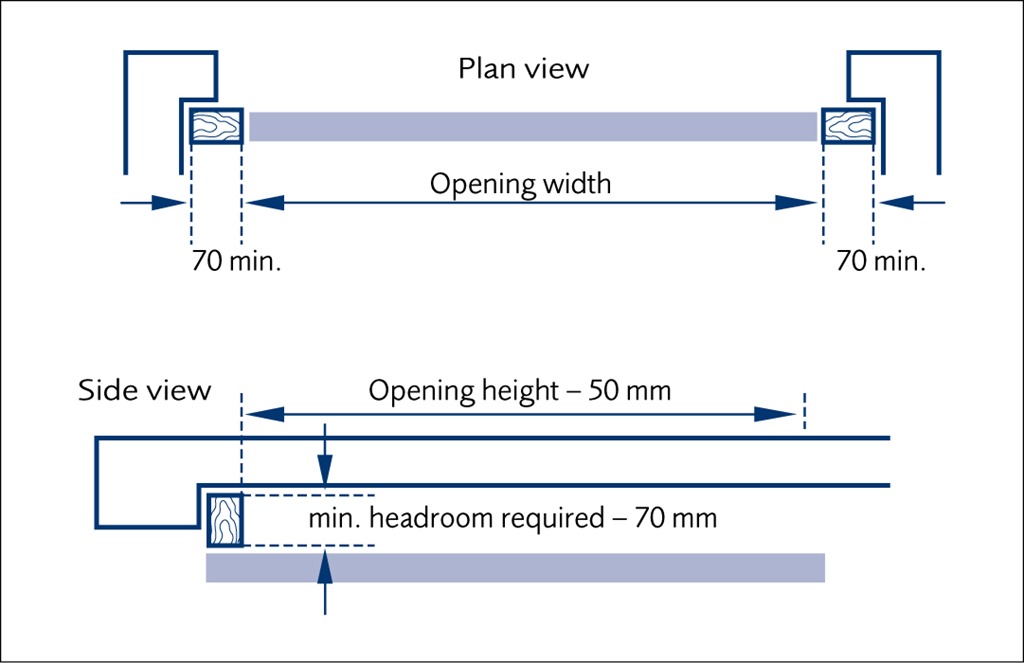

| On Site Timber Frame  Behind Brickwork Fixing |
|
The garage door is supplied factory fitted to a steel box section frame and is secured to the brickwork using just 7 fixings.

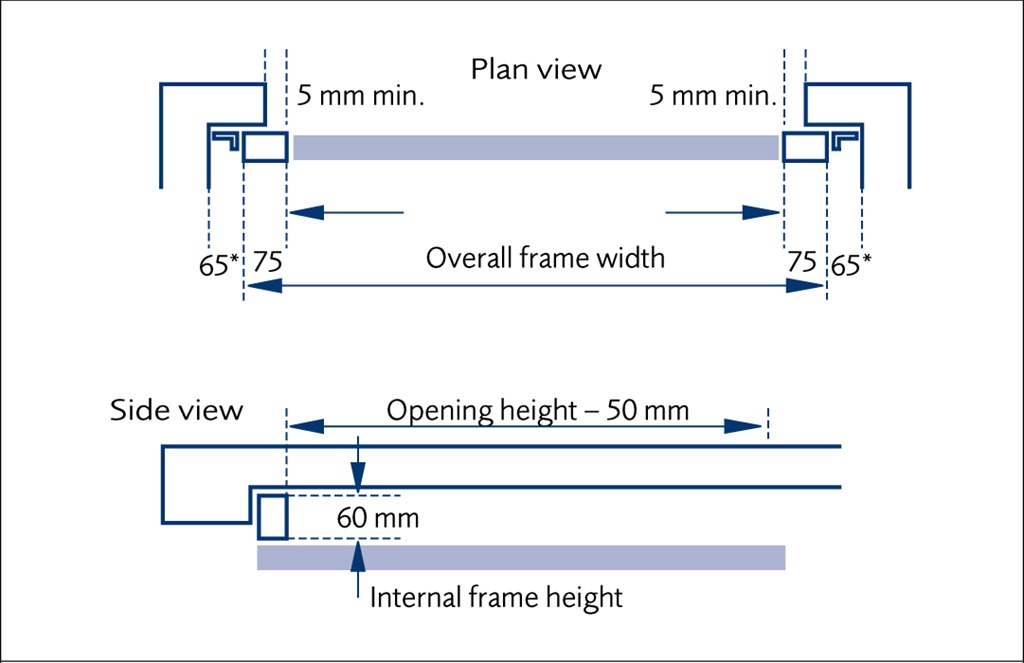

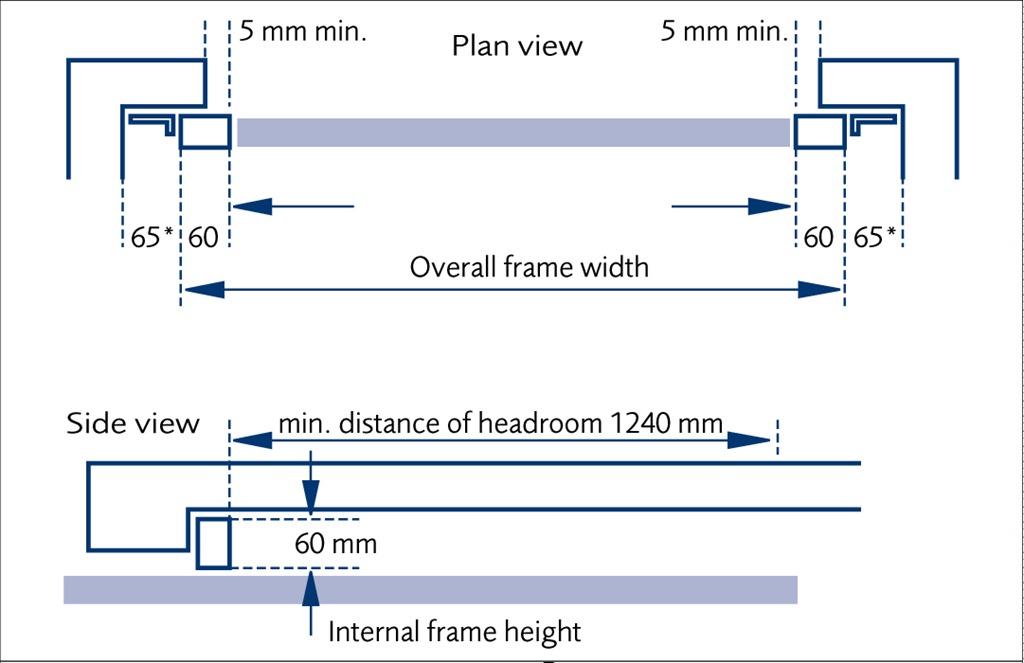

| Factory pre-framed with steel box frame  Behind Brickwork Fixing |
|

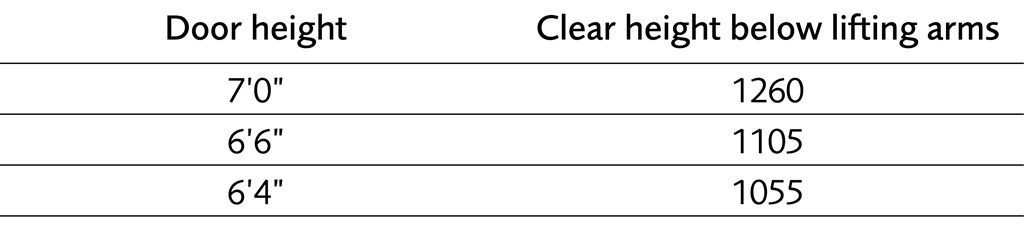

| Retractable Plus Gear For any door up to a width of 2744mm in any of the three standard heights, Retractable Plus gear is available. This gear type creates a clear drive through width at the crucial wing mirror height. |  |
Door leaves supplied factory pre-framed ready for site-installation. Fixed leaf (right hand side when viewed from inside) fitted with tower bolts at top and bottom of inner leading edge. The floor will need to be finished and level for the bottom tower bolts to engage.

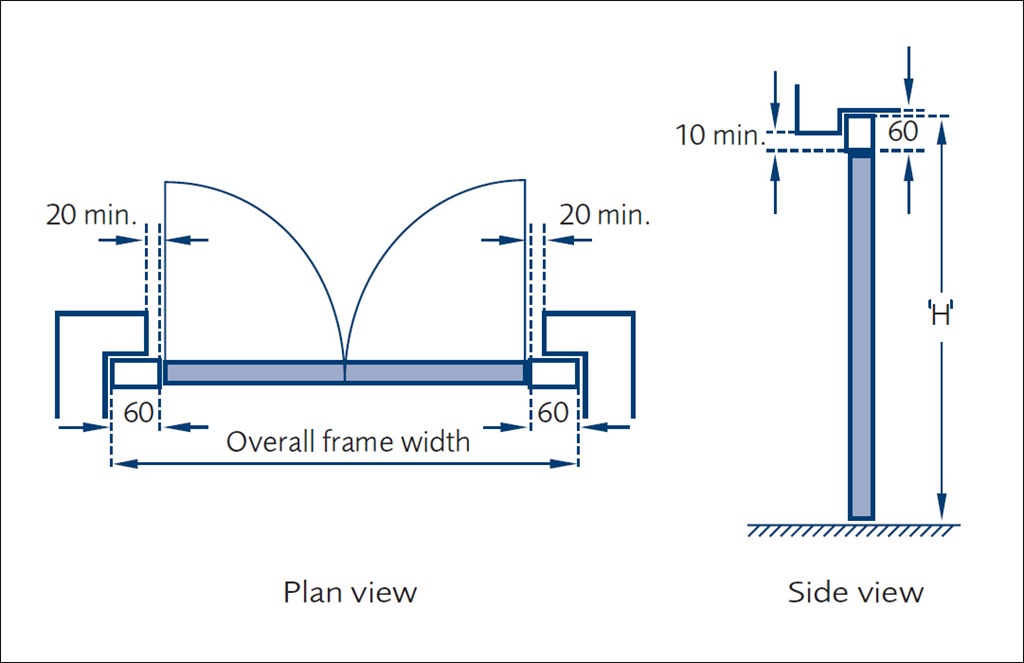

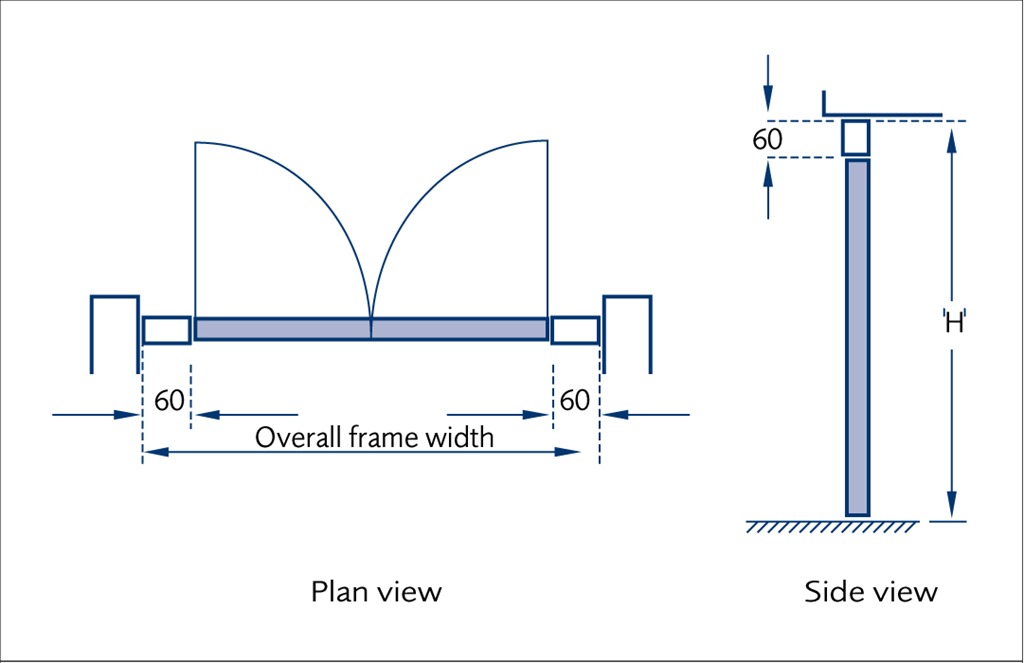

| Side-hinged door factory pre-framed  Behind Brickwork Fixing |
|
The nominal drive through clearance is 124mm less than the opening width and 12mm less than the opening height.

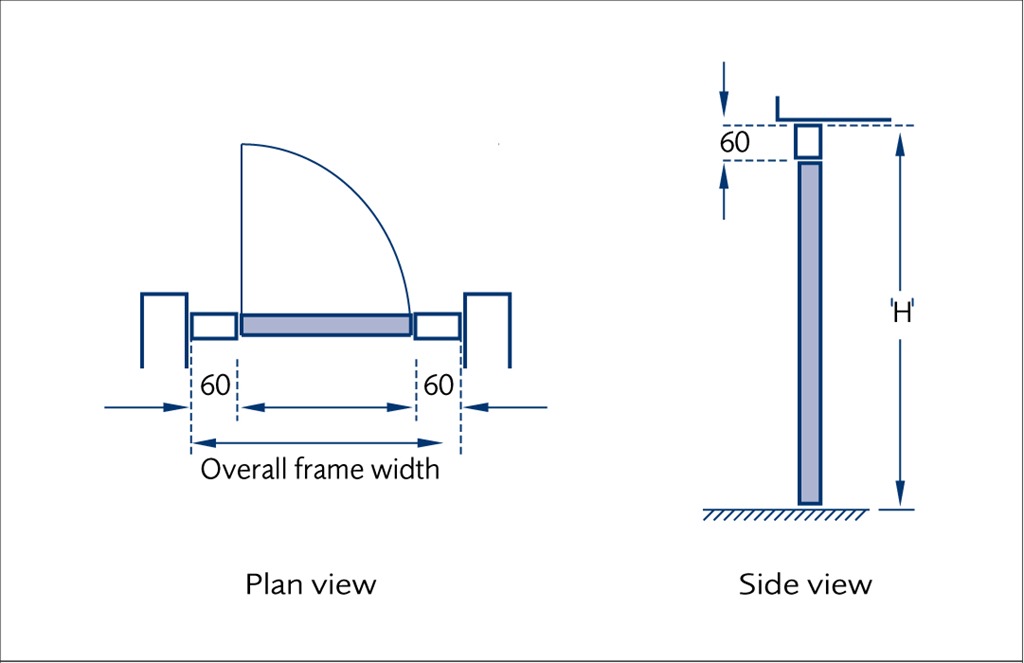

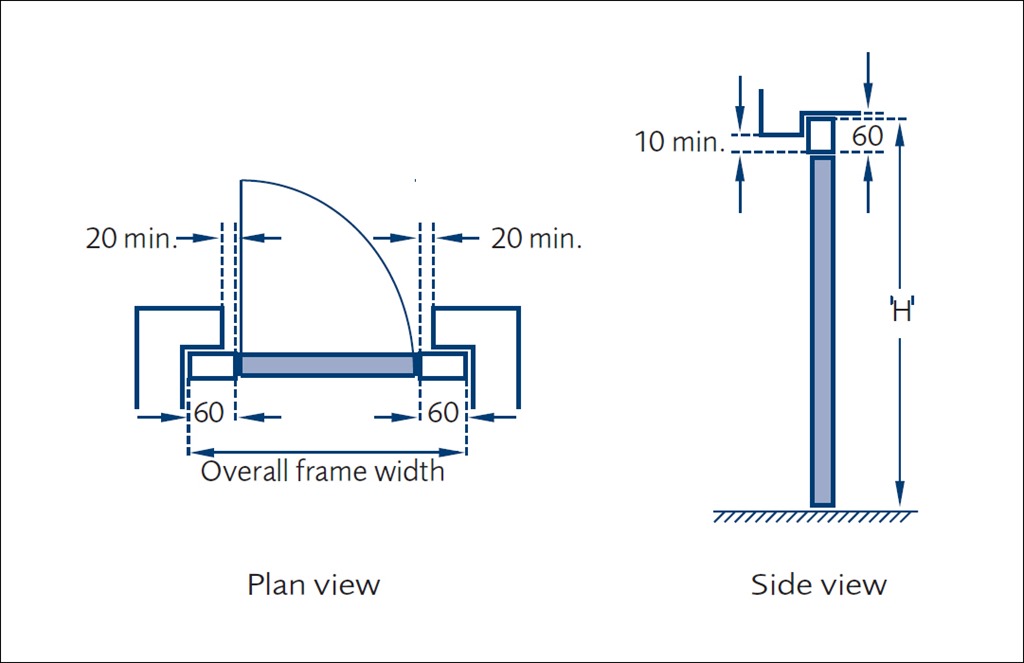

| Garage side door factory pre-framed  Behind Brickwork Fixing |
|
The nominal clear passage clearance is 74mm less than the opening width and 12mm less than the opening height.
Please click on the image below to enlarge.

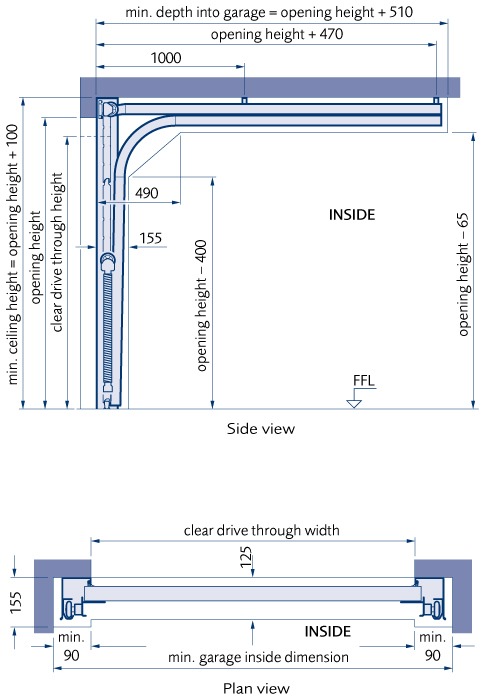

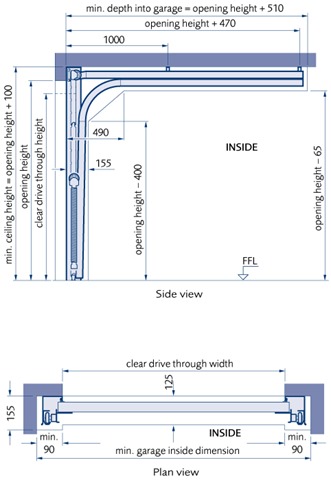

These doors come with tension spring fitting. With doors from the Premium range the tension springs can be replaced with torsion springs as an option. Tensions springs are suitable for low headroom installations. For a low headroom installation with torsion springs please order low headroom track separately (changing to a low headroom option is not available as a retrofit).
| Minimum garage dimensions for manually operated doors
|  |

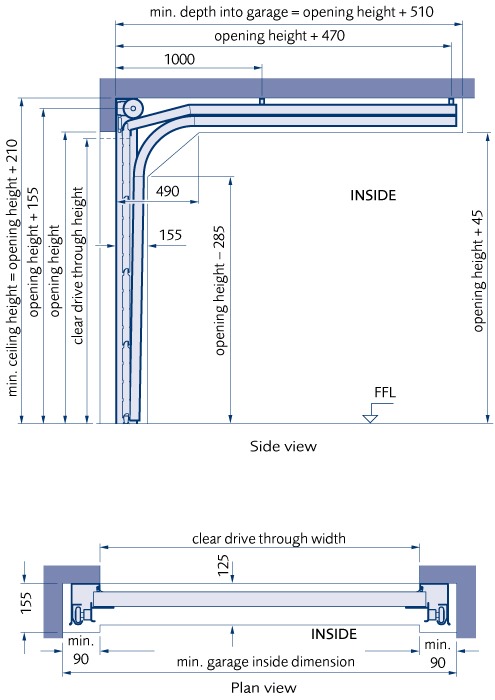

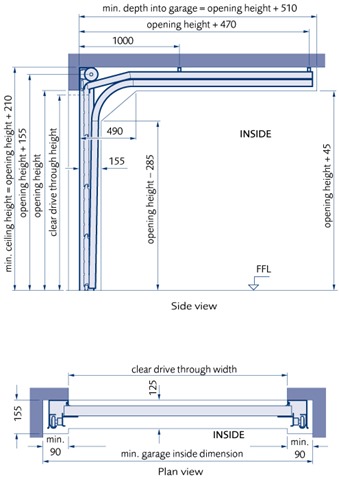

These doors come with torsion springs as standard. For a low headroom installation with torsion springs please order low headroom track pack (changing to a low headroom option is not available as a retrofit).
| Minimum garage dimensions for manually operated doors
|  |

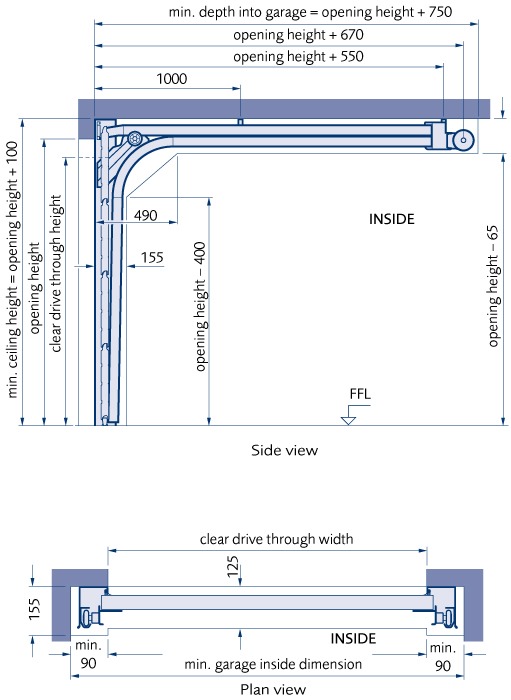

These doors come with torsion springs as standard. For a low headroom installation with torsion springs please order low headroom track pack (changing to a low headroom option is not available as a retrofit).
| Minimum garage dimensions for manually operated doors
|
|

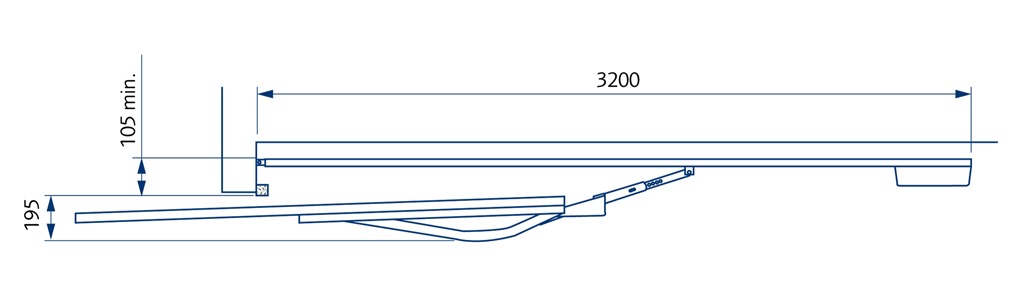

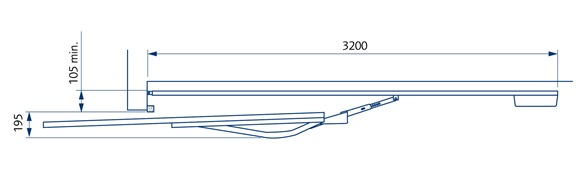

Boom for canopy door including canopy bow arm

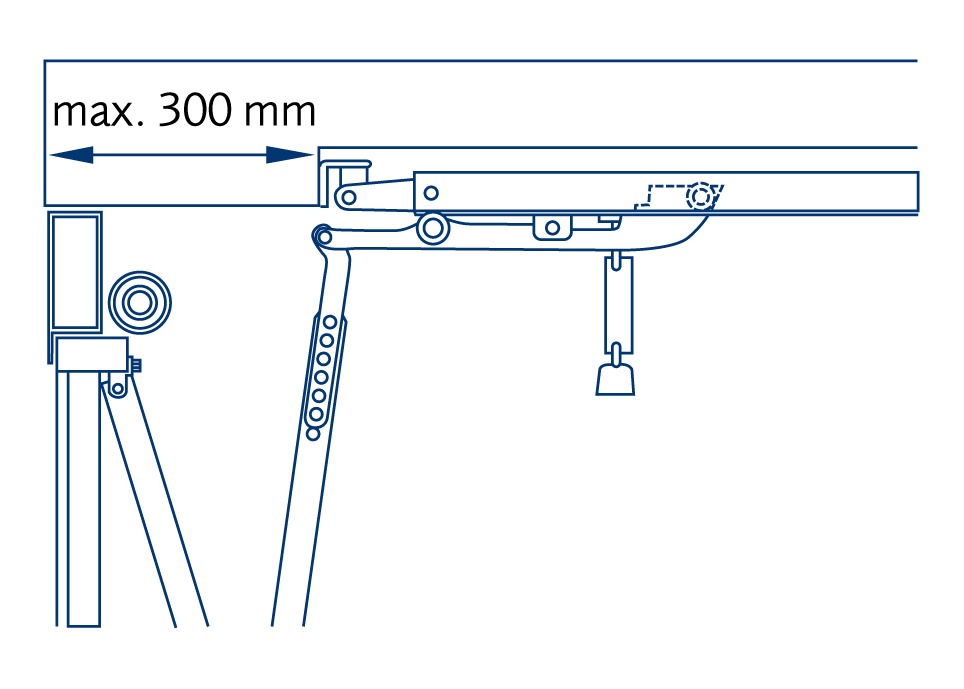

 |  Lintel expansion bracket required for canopy doors fitted between the brickwork and under the lintel head. |

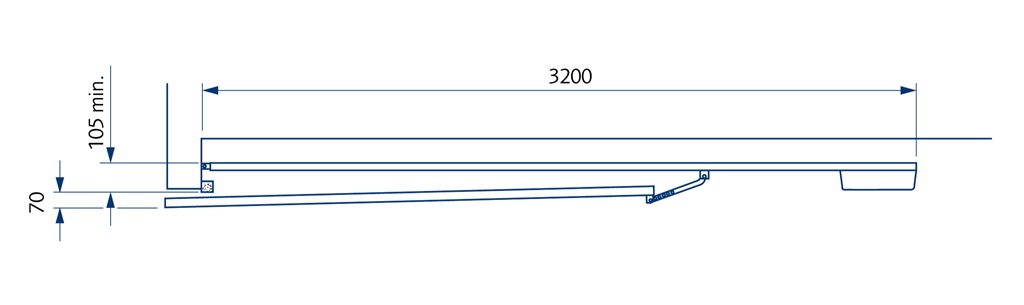

Boom for retractable door
Boom for sectional door

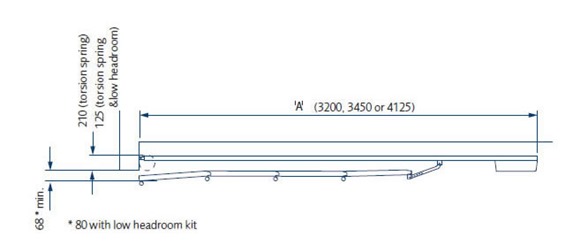

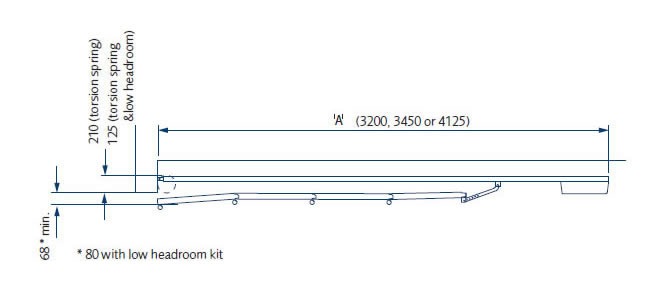

K – Short Boom Total Length = 3200mm
M - Medium Boom Total Length = 3450mm
L - Large Boom Total Length = 4125mm

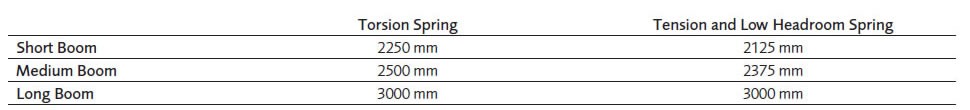

Maximum Door Height to suit Operator Booms
On horizontal doors the bow arm is to be fitted off centre
 | Clear passage height =
|
 | Clear passage height =
|

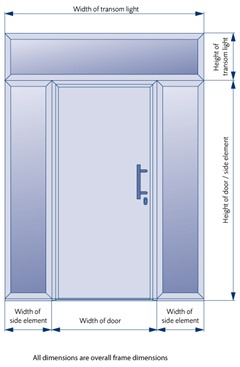

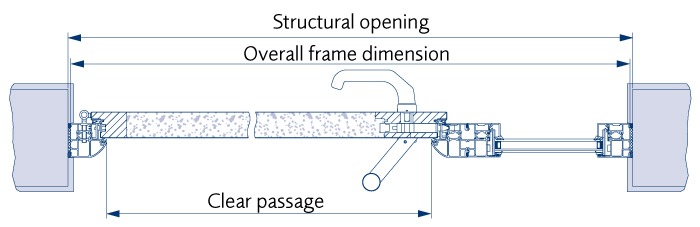

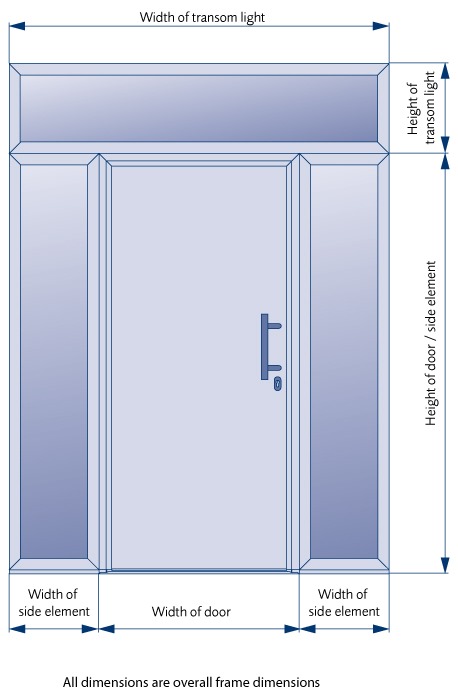

| FrontGuard door dimensions | Plan of door with side element

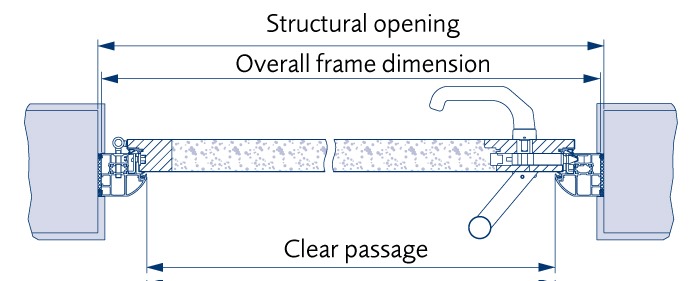

Plan view of door with side element |

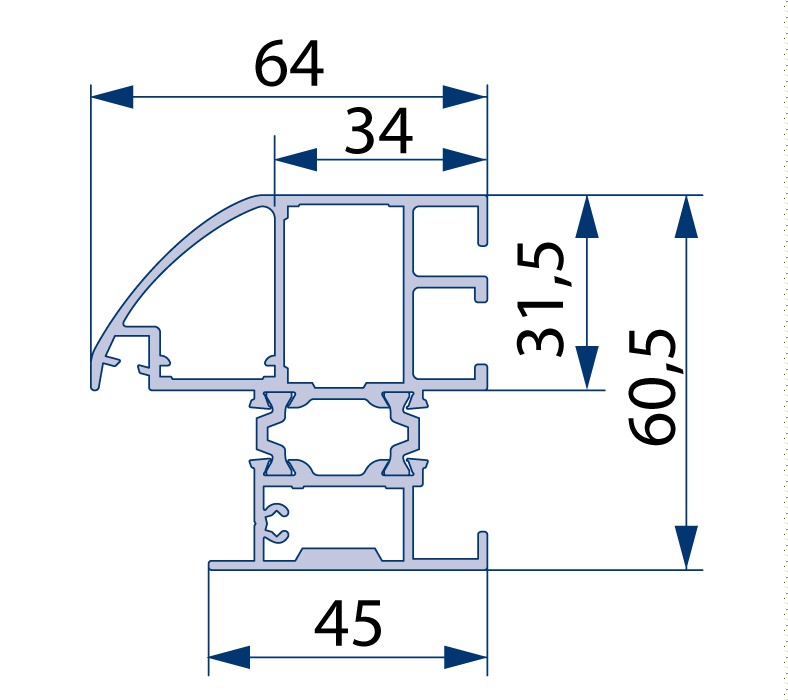

| Plan view of door | Round style frame |

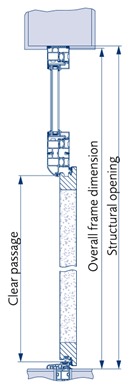

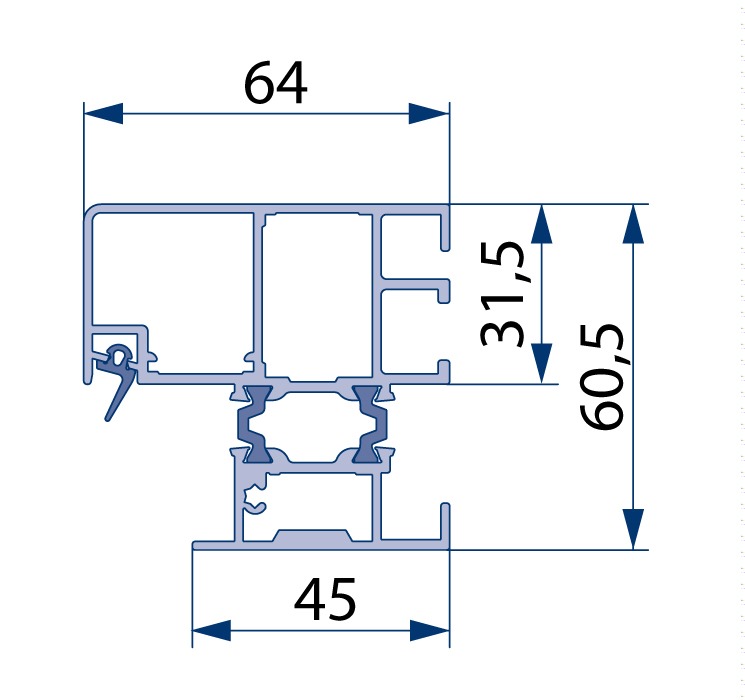

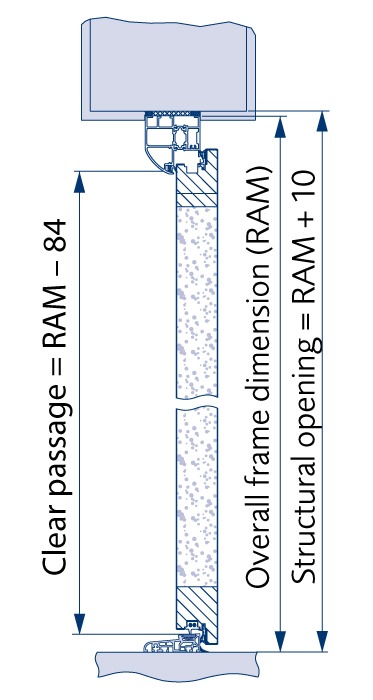

| Side view of door | Quadrangular frame |
Sizing Information
Understanding how to size and measure your new garage door is not always straightforward, which is why we have created a helpful section below with lots of sizing information and detail to help you specify the correct door size.

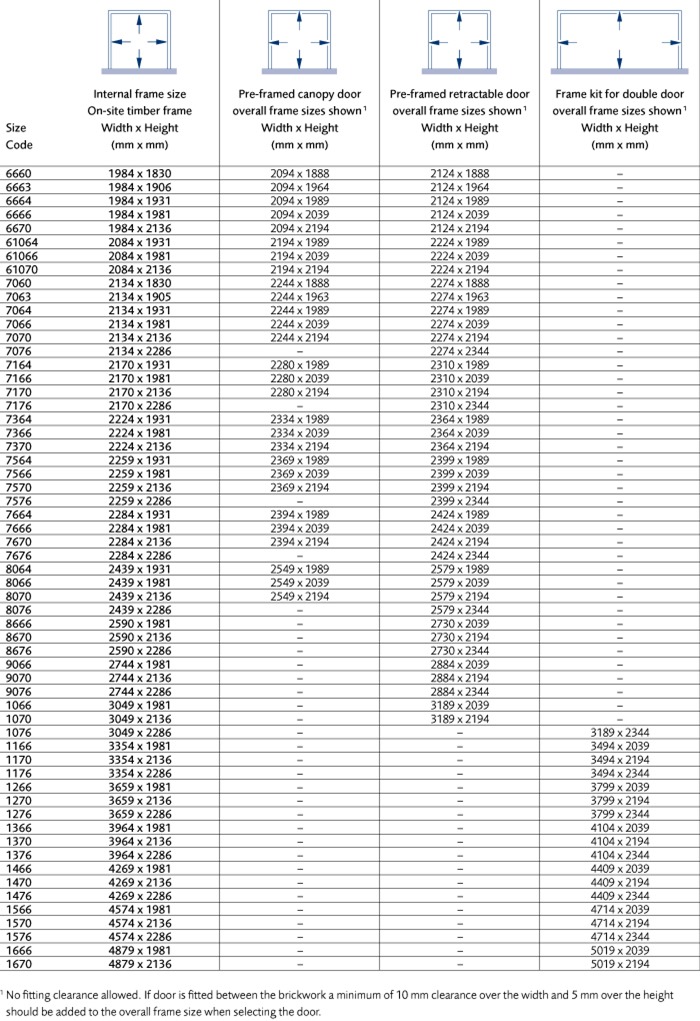

Up & over garage doors are measured as a nominal door size, which is the door size between the steel or timber frame, and can be fitted either between the brickwork or behind the reveals. Please see the table below for further details.
* No fitting clearance allowed. If door is fitted between the brickwork a minimum of 10mm clearance over the width and 5mm over the height should be added to the overall frame size when selecting the door.
 |  |  |  | |
| Size Code | Internal frame size | Pre-framed canopy door. Overall frame sizes shown* | Pre-framed retractable door. Overall frame sizes shown* | Frame kit for double door. Overall frame sizes shown* |
| 6660 | 1984 x 1830 | 2094 x 1888 | 2124 x 1888 | - |
| 6663 | 1984 x 1905 | 2094 x 1963 | 2124 x 1963 | - |
| 6664 | 1984 x 1931 | 2094 x 1989 | 2124 x 1989 | - |
| 6666 | 1984 x 1981 | 2094 x 2039 | 2124 x 2039 | - |
| 6670 | 1984 x 2136 | 2094 x 2194 | 2124 x 2194 | - |
| 61064 | 2084 x 1931 | 2194 x 1989 | 2224 x 1989 | - |
| 61066 | 2084 x 1981 | 2194 x 2039 | 2224 x 2039 | - |
| 61070 | 2084 x 2136 | 2194 x 2194 | 2224 x 2194 | - |
| 7060 | 2134 x 1830 | 2244 x 1888 | 2274 x 1888 | - |
| 7063 | 2134 x 1905 | 2244 x 1963 | 2274 x 1963 | - |
| 7064 | 2134 x 1931 | 2244 x 1989 | 2274 x 1989 | - |
| 7066 | 2134 x 1981 | 2244 x 2039 | 2274 x 2039 | - |
| 7068 | 2134 x 2036 | 2244 x 2094 | 2274 x 2094 | - |
| 7070 | 2134 x 2136 | 2244 x 2194 | 2274 x 2194 | - |
| 7072 | 2134 x 2186 | - | 2274 x 2244 | - |
| 7076 | 2134 x 2286 | - | 2274 x 2344 | - |
| 7163 | 2170 x 1905 | 2280 x 1963 | 2310 x 1963 | - |
| 7164 | 2170 x 1931 | 2280 x 1989 | 2310 x 1989 | - |
| 7166 | 2170 x 1981 | 2280 x 2039 | 2310 x 2039 | - |
| 7168 | 2170 x 2036 | 2280 x 2094 | 2310 x 2094 | - |
| 7170 | 2170 x 2136 | 2280 x 2194 | 2310 x 2194 | - |
| 7172 | 2170 x 2186 | - | 2310 x 2244 | - |
| 7176 | 2170 x 2286 | - | 2310 x 2344 | - |
| 7364 | 2224 x 1931 | 2334 x 1989 | 2364 x 1989 | - |
| 7366 | 2224 x 1981 | 2334 x 2039 | 2364 x 2039 | - |
| 7370 | 2224 x 2136 | 2334 x 2194 | 2364 x 2194 | - |
| 7563 | 2259 x 1905 | 2369 x 1963 | 2399 x 1963 | - |
| 7564 | 2259 x 1931 | 2369 x 1989 | 2399 x 1989 | - |
| 7566 | 2259 x 1981 | 2369 x 2039 | 2399 x 2039 | - |
| 7568 | 2259 x 2036 | 2369 x 2094 | 2399 x 2094 | - |
| 7570 | 2259 x 2136 | 2369 x 2194 | 2399 x 2194 | - |
| 7572 | 2259 x 2186 | - | 2399 x 2244 | - |
| 7576 | 2259 x 2286 | - | 2399 x 2344 | - |
| 7663 | 2284 x 1905 | 2394 x 1963 | 2424 x 1963 | - |
| 7664 | 2284 x 1931 | 2394 x 1989 | 2424 x 1989 | - |
| 7666 | 2284 x 1981 | 2394 x 2039 | 2424 x 2039 | - |
| 7668 | 2284 x 2036 | 2394 x 2094 | 2424 x 2094 | - |
| 7670 | 2284 x 2136 | 2394 x 2194 | 2424 x 2194 | - |
| 7672 | 2284 x 2186 | - | 2424 x 2244 | - |
| 7676 | 2284 x 2286 | - | 2424 x 2344 | - |
| 8063 | 2439 x 1905 | 2549 x 1963 | 2579 x 1963 | - |
| 8064 | 2439 x 1931 | 2549 x 1989 | 2579 x 1989 | - |
| 8066 | 2439 x 1981 | 2549 x 2039 | 2579 x 2039 | - |
| 8068 | 2439 x 2036 | 2549 x 2094 | 2579 x 2094 | - |
| 8070 | 2439 x 2136 | 2549 x 2194 | 2579 x 2194 | - |
| 8072 | 2439 x 2186 | - | 2579 x 2244 | - |
| 8076 | 2439 x 2286 | 2579 x 2344 | - | |
| 8666 | 2590 x 1981 | - | 2730 x 2039 | - |
| 8670 | 2590 x 2136 | - | 2730 x 2194 | - |
| 8676 | 2590 x 2286 | - | 2730 x 2344 | - |
| 9066 | 2744 x 1981 | - | 2884 x 2039 | - |
| 9070 | 2744 x 2136 | - | 2884 x 2194 | - |
| 9076 | 2744 x 2286 | - | 2884 x 2344 | - |
| 1066 | 3049 x 1981 | - | 3189 x 2039 | - |
| 1070 | 3049 x 2136 | - | 3189 x 2194 | - |
| 1076 | 3049 x 2286 | - | - | 3189 x 2344 |
| 1166 | 3354 x 1981 | - | - | 2494 x 2039 |
| 1170 | 3354 x 2136 | - | - | 3494 x 2194 |
| 1176 | 3354 x 2286 | - | - | 3494 x 2344 |
| 1266 | 3659 x 1981 | - | - | 3799 x 2039 |
| 1270 | 3659 x 2136 | - | - | 3799 x 2194 |
| 1276 | 3659 x 2286 | - | - | 3799 x 2344 |
| 1366 | 3964 x 1981 | - | - | 4104 x 2039 |
| 1370 | 3964 x 2136 | - | - | 4104 x 2194 |
| 1376 | 3964 x 2286 | - | - | 4104 x 2344 |
| 1466 | 4269 x 1981 | - | - | 4409 x 2039 |
| 1470 | 4269 x 2136 | - | - | 4409 x 2194 |
| 1566 | 4574 x 1981 | - | - | 4714 x 2039 |
| 1570 | 4574 x 2136 | - | - | 4714 x 2194 |
| 1666 | 4879 x 1981 | - | - | 5019 x 2039 |
| 1670 | 4879 x 2136 | - | - | 5019 x 2194 |
Sectional doors are designed to be fitted behind the reveals and the door size would therefore normally be the same as the brickwork opening size.
Sectional doors can be fitted between the reveals, please seek further advice.

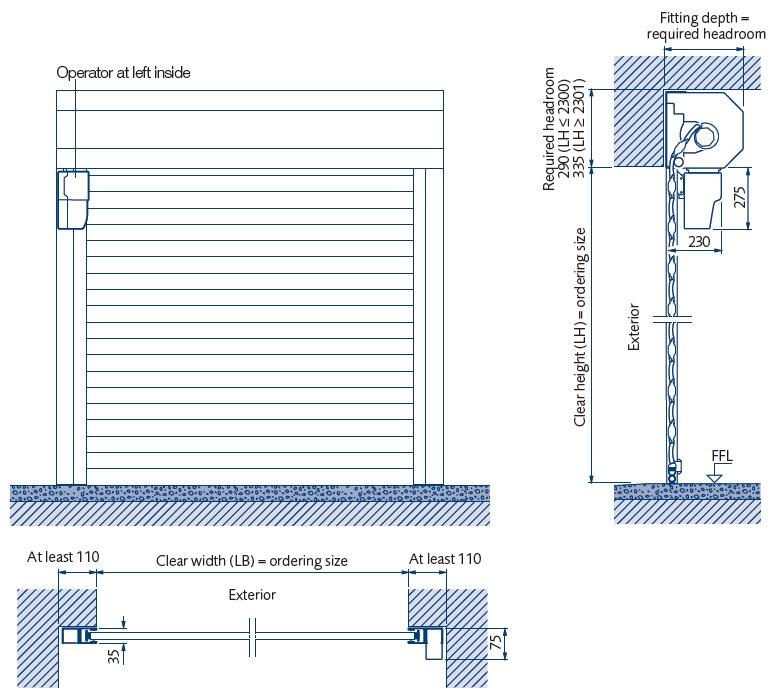

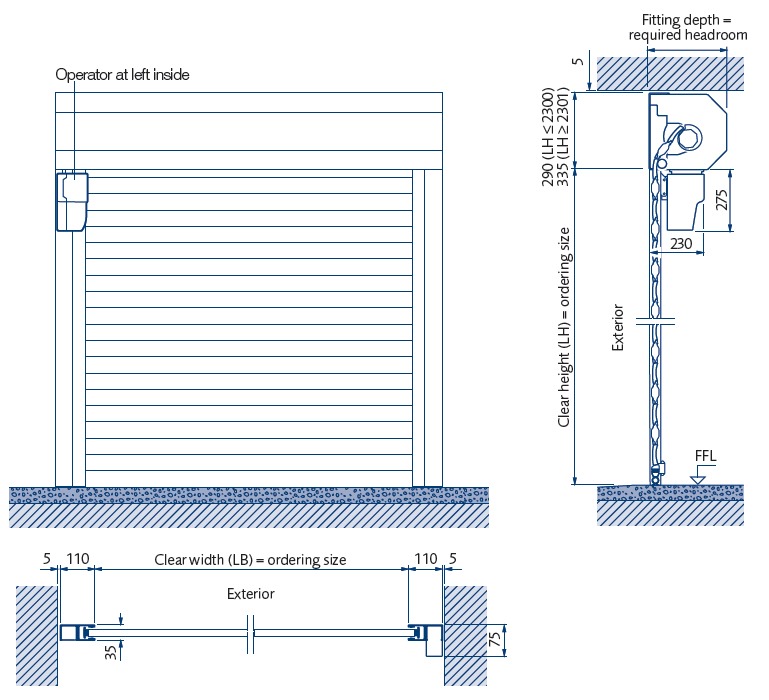

GaraRoll roller garage doors are made to order and then fitted behind the reveals. For size and pricing information, please use your structural opening sizes.
