Sectional Garage Doors

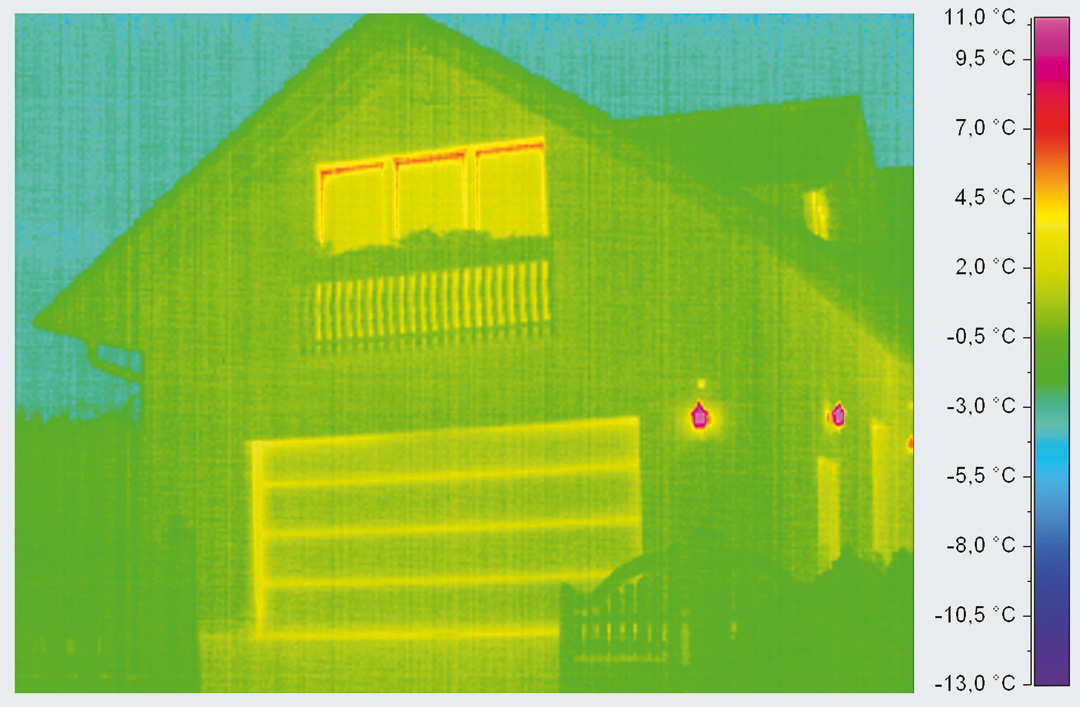

A door for all seasons
Our sectional garage doors provide outstanding thermal performance for your garage, even when it’s cold, wet and windy. An insulated design retains heat indoors and sturdy rubber seals all around prevent drafts, helping to reduce heat loss and lower your energy bills. The Garador sectional garage door truly is the door for all seasons.

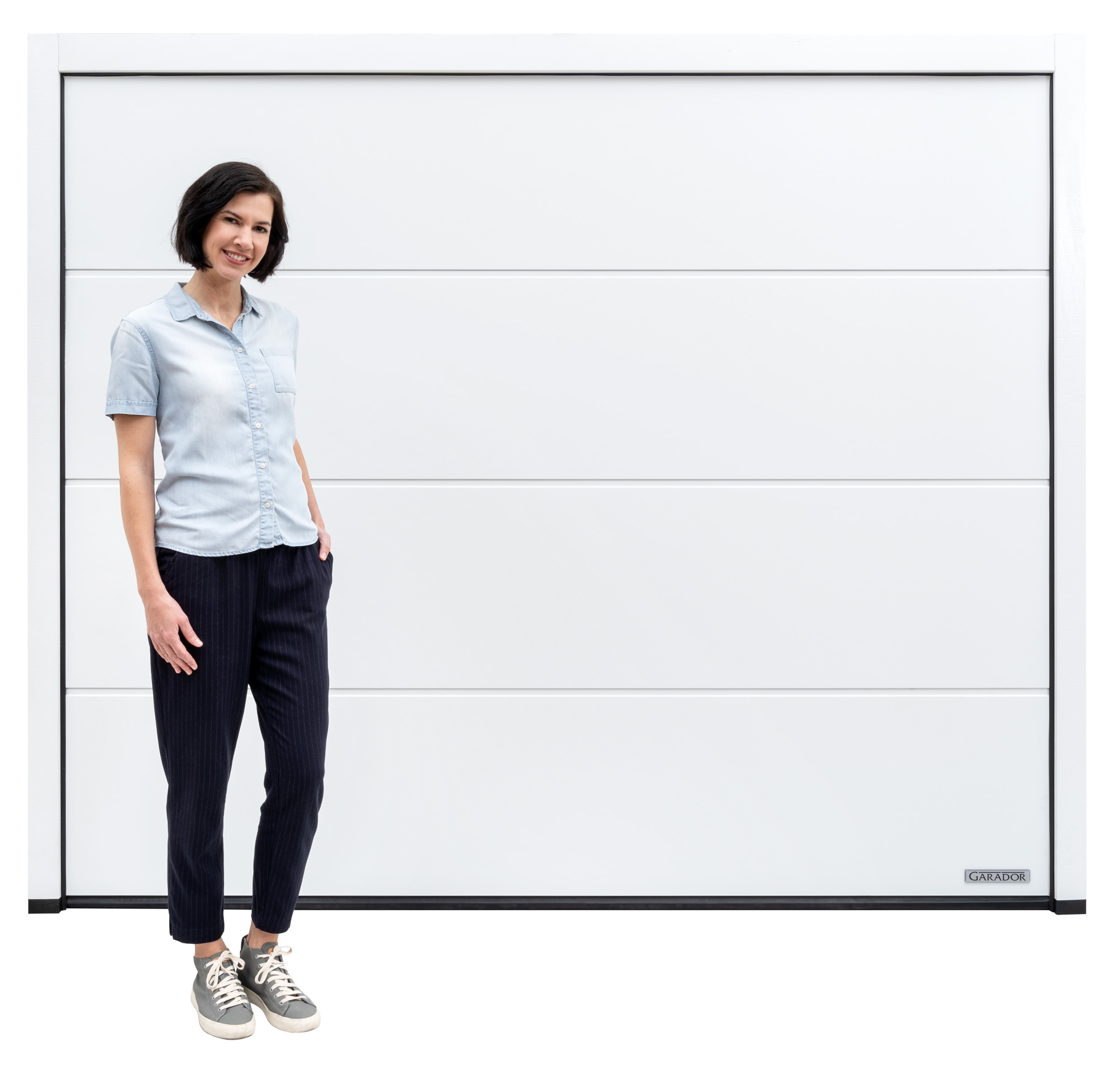

Full drive-through width
When parking your car inside the garage, there are no lifting arms taking up valuable room in the clear passage space. So you have full use of the drive-through opening width. This is an especially important consideration in garages where the opening is narrower.
The anti-lift kit built into the GaraMatic operator, prevents unwanted intruders from lifting the door by force and gaining unauthorised access to your garage. Furthermore, the door has double-skinned steel sections with an insulated foam core, which are very strong and resistant to forced entry, so you can rest assured your belongings are secure.
A nicer environment
Weatherproof rubber seals on all four sides of the door and the intermediate door sections, help to prevent cold drafts and rainwater ingress. This excellent sealing means that your garage is well protected from heavy rain, so virtually no rainwater can penetrate through the door when closed. It also stops unwanted dirt, dust and leaves from blowing inside your garage when the door is closed, contributing to a much nicer environment indoors.

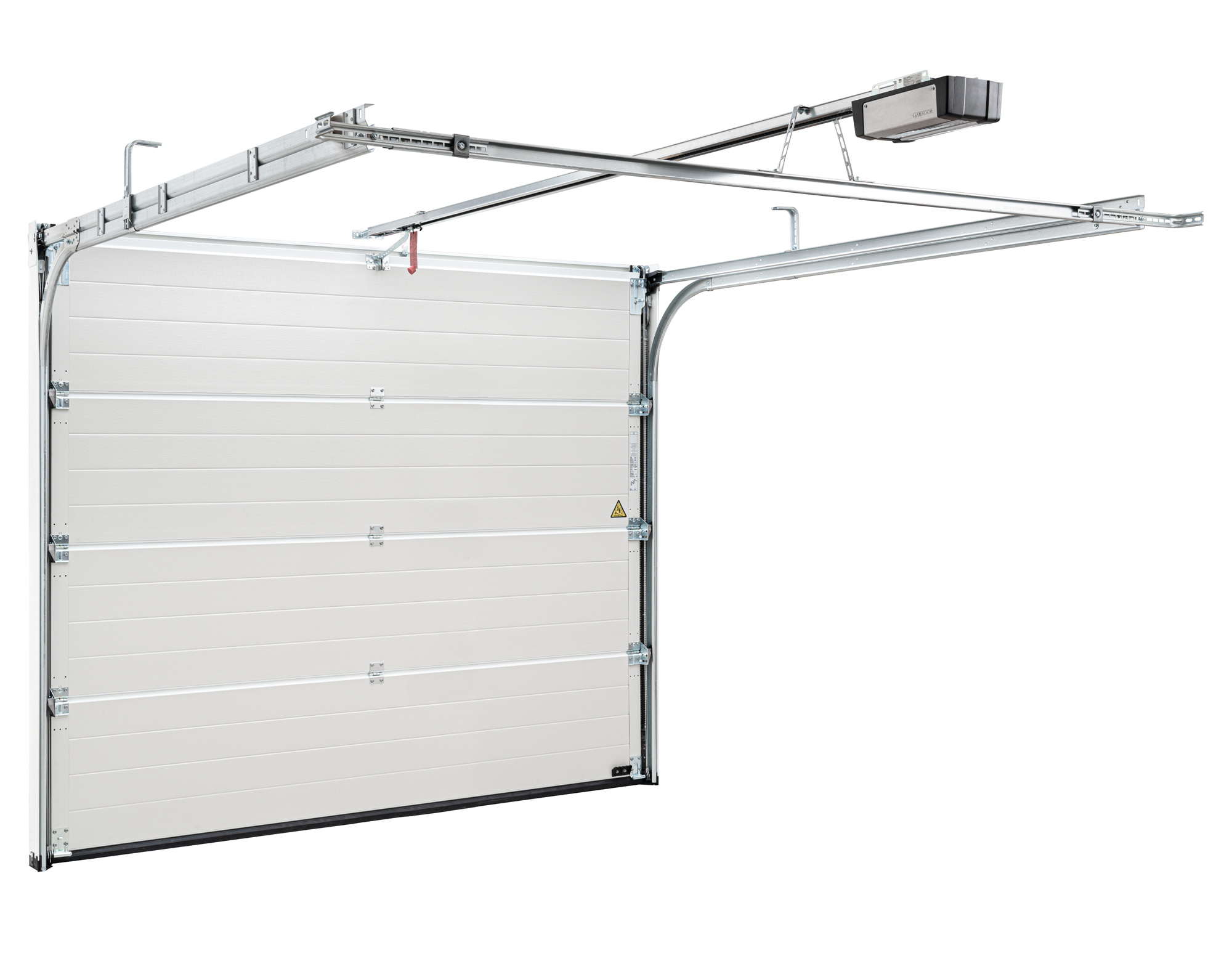

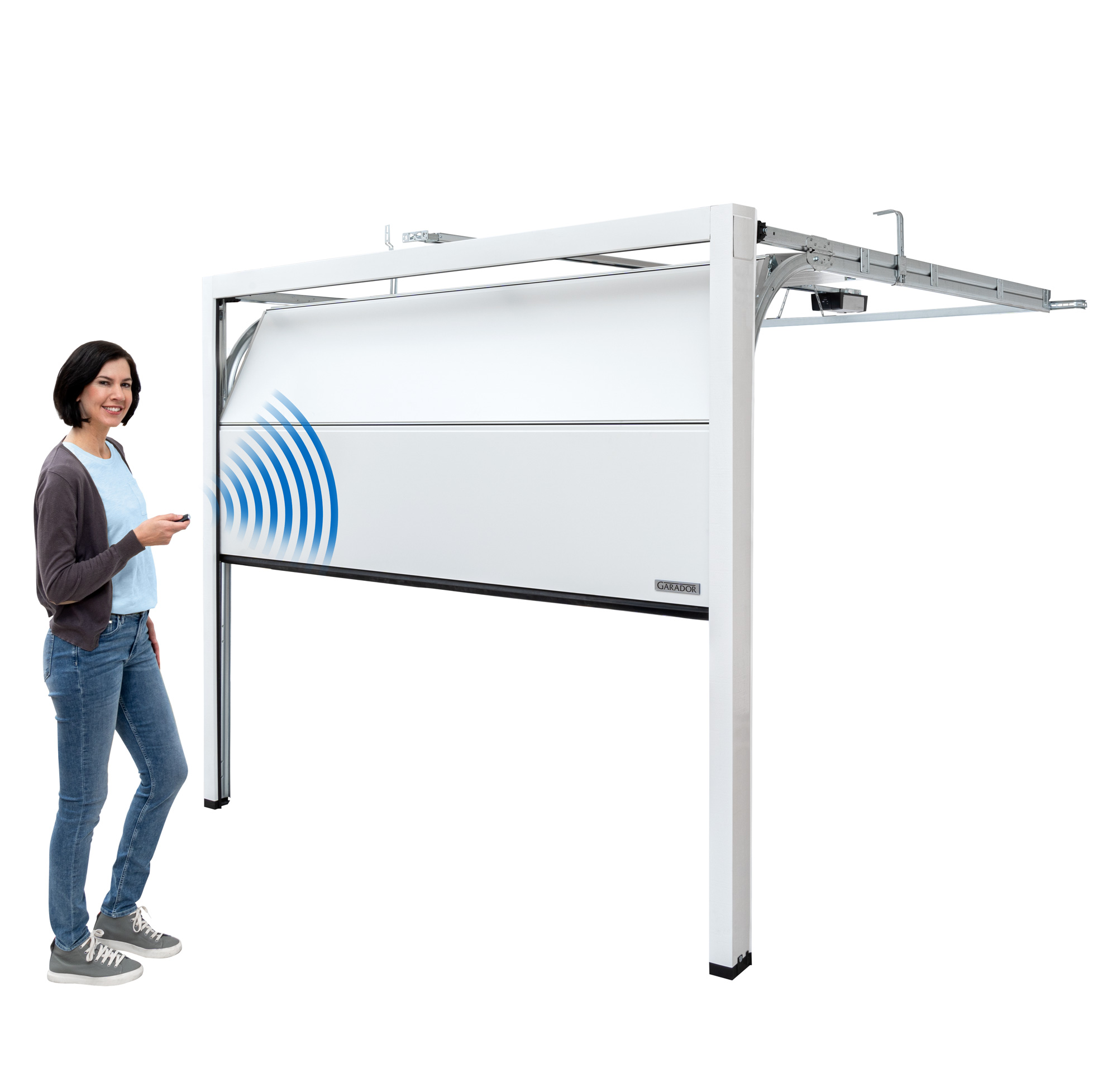

Simply press a button
When supplied with a GaraMatic operator (recommended), you can conveniently operate your Garador sectional garage door by simply pressing a button on your hand transmitter or radio code switch. No need to open and close your door manually by hand. Plus, you can now control your garage door with your smartphone using the BlueSecur app.
Expert engineering, designed for everyday use

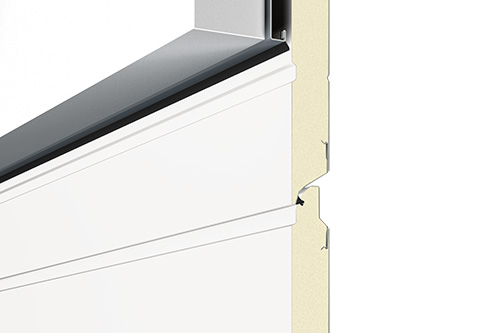

Flush fitting panels For 42 mm premium sectional doors, a flush-fitting fascia panel is the most elegant solution for an invisible transition between the panel and door leaf. When the door is closed, the top door section is flush with the panel.
Outer edge and intermediate seals Flexible and weather resistant seals on all four sides of the door help to keep the wind and rain outside. Intermediate seals between every section joint, further enhance the door’s thermal insulation.

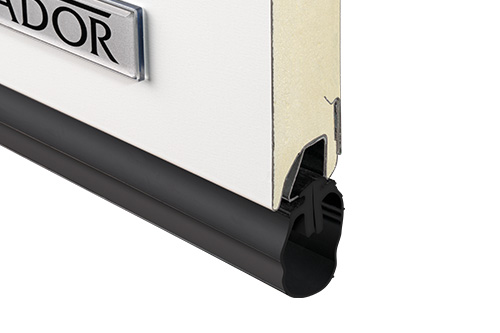

Floor seal A large bottom weather seal accommodates any slight inconsistencies in the surface of your floor, creating a tight seal and preventing drafts.

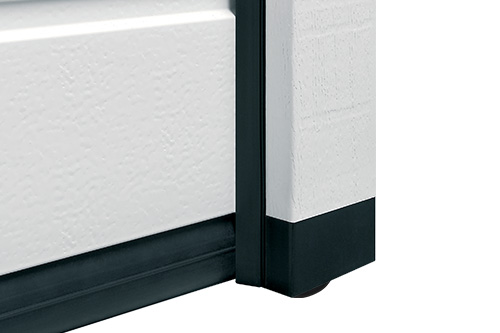

Plastic frame footer A plastic protective cover is fitted to the base of both sectional door frame legs. This provides long-term protection against corrosion that might be caused by humid acids or salts, in a part of the door that is susceptible to rust.
Your safety is our commitment
Side hand guard The side tracks are completely enclosed, from top to bottom, so there are no gaps between the door leaf and the frame where fingers could get trapped.

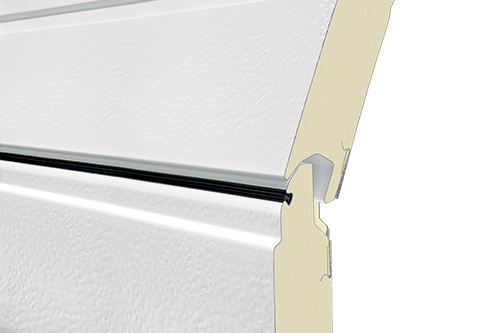

Pinch protection Each of the door sections have been designed specifically to prevent finger trapping. Each section rebate is optimally shaped as a finger protection profile that is effective both between the door section and on the hinges.

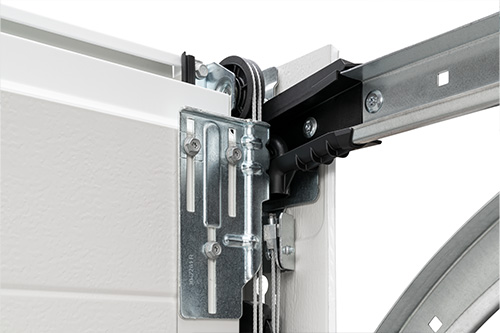

Anti-drop safety device Garador sectional doors with either tension or torsion lifting gear, have an integrated anti-drop safety device. These systems prevent the door from crashing down in the event of a spring or cable failure.
Safe door travel The combination of adjustable rollers, solid roller brackets and safety tracks, prevents the door sections from derailing.
Insulated door sections
Our Premium sectional garage doors provide great thermal insulation, which is perfect for integral garages. Each door section is 42 mm thick and filled with CFC-free PU rigid foam. This is encased by a steel skin on both sides of the panel, for a strong and stable construction, and a seal between each section to prevent drafts.
A choice of surface textures
Choose from six surface textures, each with their own unique look and feel, to best complement the aesthetics of your property and accommodate different use-cases. Along with the surface texture, you can also choose from a wide range of RAL colours and timber effects to make your sectional garage door truly unique.

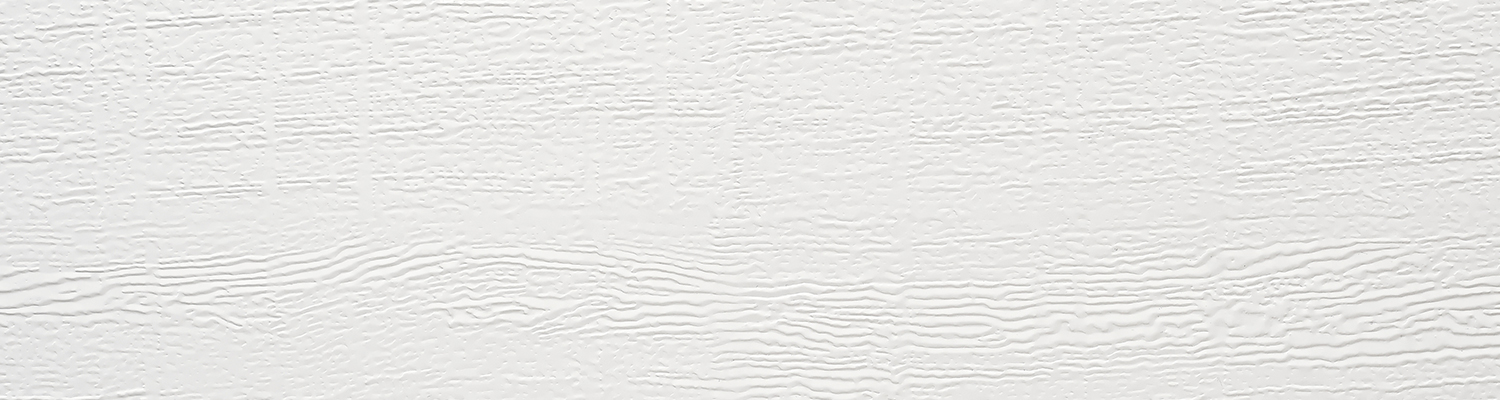

Woodgrain
Robust surface texture with an authentic sawn timber look, where minor scratches can be easily repaired by working with the texture. Long-lasting and resilient.

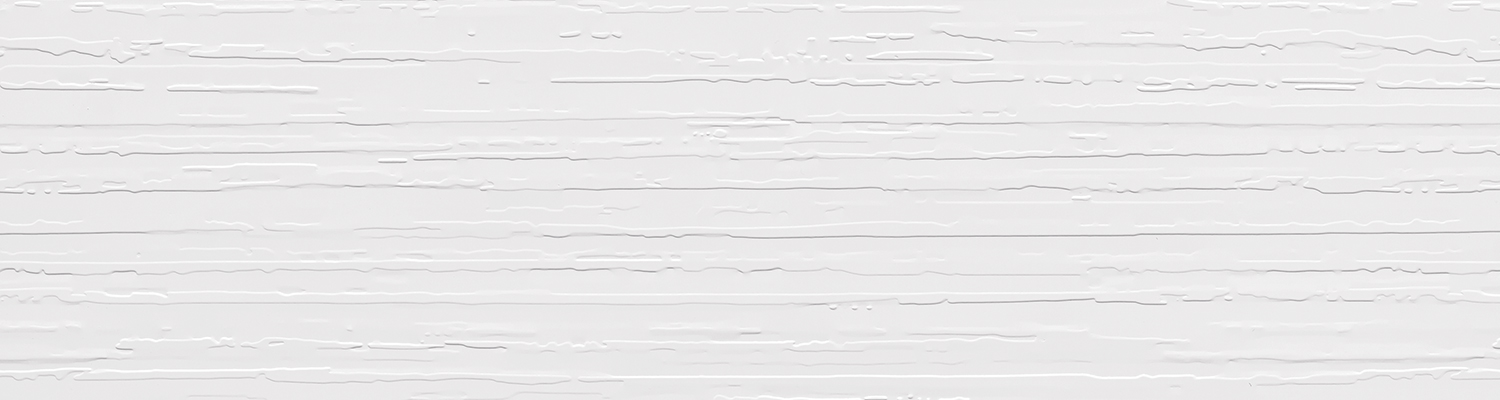

Slategrain
Imitates the fine grained and foliated surface texture of the naturally occurring rock, slate. Distinctive and versatile in use.
Silkgrain
The first choice for modern architecture, with it's smooth and minimalistic surface texture. A 50 % thicker exterior sheet on the sections also ensures higher stability and even smoother running. Elegant and modern.
Timber effect
Featuring a UV-resistant plastic film coating which gives your sectional garage door a striking and authentic timber effect. Realistic and detailed.
Metallic finish
A sleek and sophisticated choice, with a smooth and shiny surface texture. Distinguished and memorable.

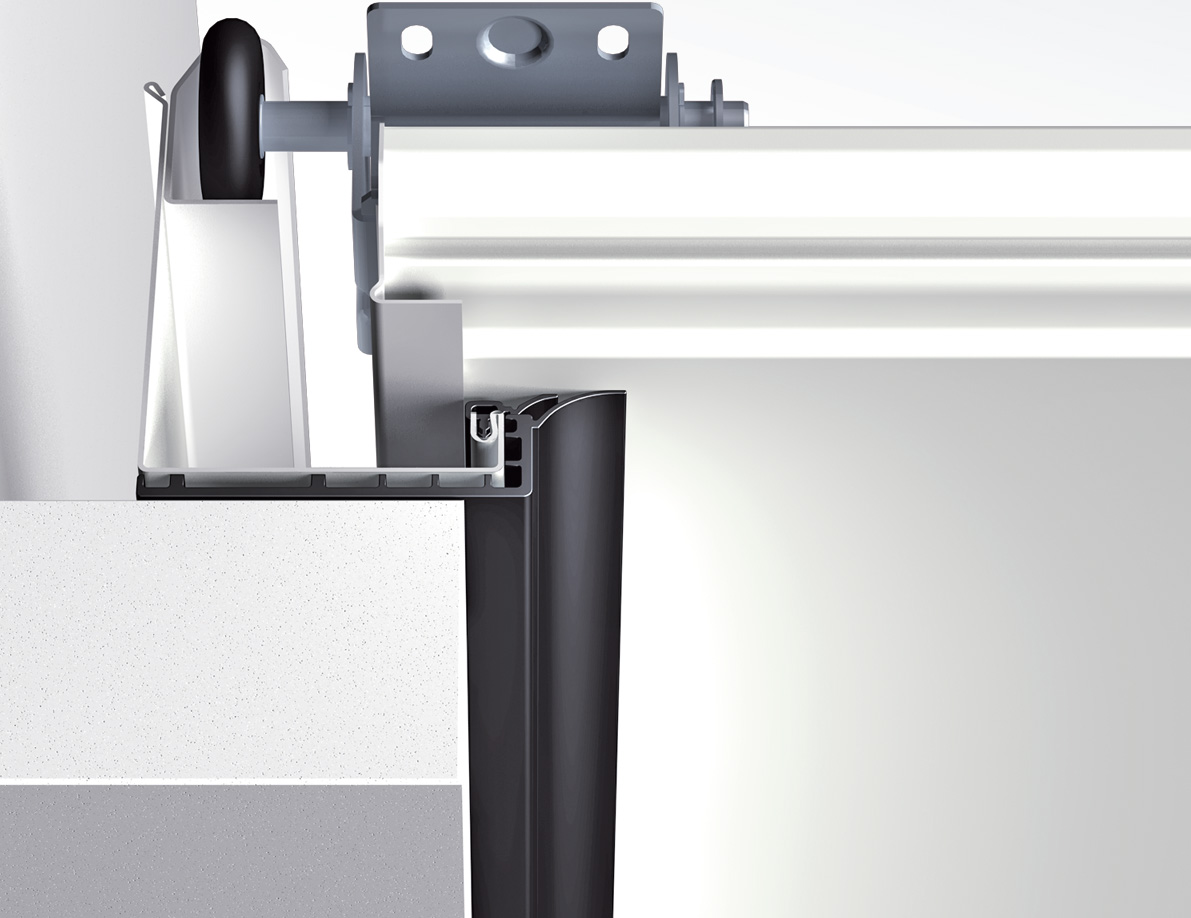

Enhance insulation with ThermoFrame
Garador’s Thermoframe provides up to 15% improved thermal insulation. The plastic profile, that’s fitted to the door frame, creates a thermal break between the frame and brickwork. Extra rubber seals on both sides of the door and on the top door section, contribute to a better overall seal.
| Max door width | 5500mm |
| Max door height | 3000mm |
| Insulation | 42mm (PU-foam filled) |
| Standard RAL colours | 15 |
| Thermal insulation | U = 1.4 W/m2K |
| Wind load | Class 3 |
| Air sealing | Class 3 |
| Water sealing | Class 3 |
